Plastic PVC Electric Conduit Drainage Water Gas Suppy Tube Extrusion Production Line Making Machine

Brand Name : LB

Model Number : LB-110

Certification : CE ISO9001

Place of Origin : ZHANGJIAGANG, JIANGSU

MOQ : 1 SET

Price : USD EUR

Payment Terms : L/C, T/T

Supply Ability : 15 SETS PER MONTH

Delivery Time : 30 WORKING DAYS

Packaging Details : NORMAL PACKAGE

PIPE DIAMETER : 75-250

EXTRUDER'S POWER : 55KW

COLOUR : CUSTOMIZED

PIPE UMBERS : SINGLE PIPE

RAW MATERIAL : PVC POWDER & ADDITIVES

APPLICATION : WATER SUPPLY PIPE

Voltage : 380V 50Hz or customized

Automatic grade : Full-automatically

Screw design : Twin screw and barrel

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support

Warranty : 18 months

Inverter : ABB

Color : Customizable

Raw material : PVC Powder

Motor : SIEMENS Brand

Contactor : SIEMENS OR SCHNIDER

Screw and barrel : Conical twin screw extruder

Screw diameter : 65/132

Pipe Application : Water Supply

Packages : Film and boxes

Payment : T/T, L/C, Western Union

Delivery time : 60 days

Contact Now

Plastic PVC Electric Conduit Drainage Water Gas Suppy Tube Extrusion Production Line Making Machine
Short desciption

1. It is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building water supply and drainage and cable laying, etc.
2. Saw cutter and planetary cutter for choice.
3. Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
4. Coincal twin screw extruder and parallel twin screw extruder for choice
5. Double-strand for four-strand for choice for small pipes

Tech Features & Advantages

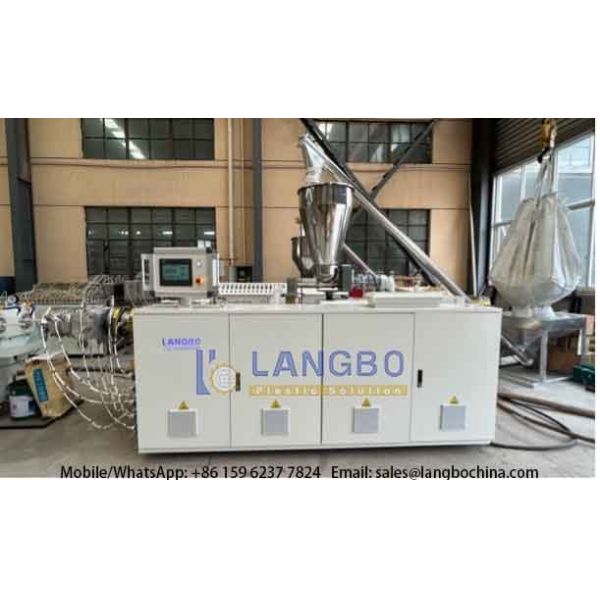

It can process various soft and rigid PVC, especially process powder directly into pipe shape. It consists conical twin-screw extruder, vacuum calibration tank, haul-off unit, stacker or belling machine, etc.
The screw extruder and haul-off unit adopt AC inverters. All electric parts are international well-known brand products, which guarantee quality of machine. The PLC and big true-color screen panel make control system with high automation.

Producting process
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration
Cooling Tank → (Spray Cooling Tank) →Printer → Haul-off Unit →cutter →stacker

Specifications:

MODEL	PIPE DIAMETER (MM)	EXTRUDER MODEL	MOTOR POWER (KW)
LB-32F	16-32 (FOUR PIPE)	SJSZ65/132	37 AC
LB-32E	16-32 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-32W	16-32 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-40E	16-40 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-40W	16-40 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-50E	16-50 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-50W	16-50 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-63W	16-63 (DOUBLE PIPE)	SJSZ65/132	37 AC

Product detail

1. Raw Material Preparation
- PVC compound (resin + additives) is mixed in a high-speed mixer to ensure homogeneity.
- The mixture is cooled and fed into the extrusion hopper.

2. Extrusion Process
- Single/Dual-Screw Extruder melts and compresses the PVC mix at controlled temperatures (160°C–200°C).
- The molten PVC is forced through a die head, shaping it into a pipe.

3. Sizing & Calibration
- The hot pipe passes through a vacuum calibrator to achieve precise diameter and wall thickness.
- Cooling tanks (spray or water bath) solidify the pipe.

4. Pulling & Cutting
- A haul-off unit pulls the pipe at a synchronized speed.
- An automatic cutter** trims pipes to required lengths (e.g., 4m or 6m).

5. Stacking & Packaging
- Pipes are stacked by a conveyor system or robotic arm.
- Bundled and labeled for shipment.

Technical Features:

- High Output Efficiency – Continuous extrusion for mass production.
- Precision Control – Advanced PLC system for temperature, speed, and thickness regulation.
- Durable Construction – Corrosion-resistant materials for long service life.
- Energy Saving – Optimized motor and heating system to reduce power consumption.
- Multi-Layer Extrusion – Optional co-extrusion for reinforced pipes.
- Easy Maintenance – Modular design for quick cleaning and part replacement.

Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case

Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.
